Controls

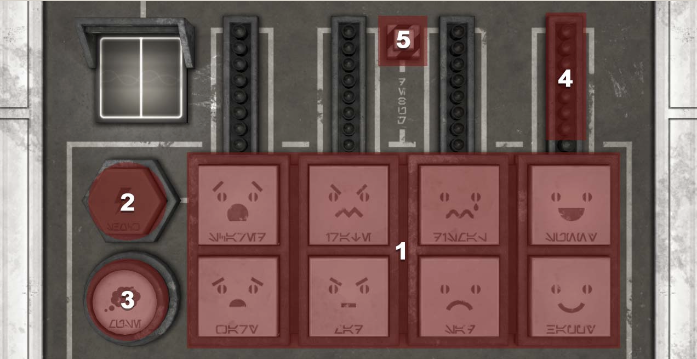

Main Panel

1. Trigger emotional stimulus​

   • Each column represents stimuli for a core emotion. From right to left: happiness, sadness, anger, fear.

   • Press a lower button to trigger a mild stimulus. Press an upper button to trigger an extreme stimulus.

2. Trigger electrocution/overload stimulus​

3. Toggle muse​

4. ​Emotion indicators

   • As R2 becomes happier, the happiness lamps light sequentially.

   • While an experienced operator will be intimately familiar with R2's personality and will also recognize R2's emotional state purely from the nature of his speech, these lamps offer a quick reference point.

5. View memory panel​

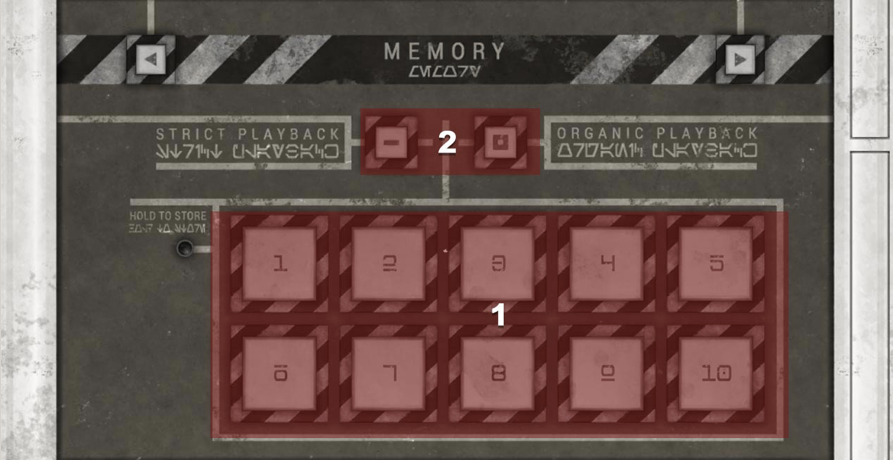

Memory Panel

1. ​Memory bank

   • Press and hold a memory button to store R2's most recent vocalization.

   • Press and release normally to replay the stored vocalization.

2. Choose between strict and organic memory playback

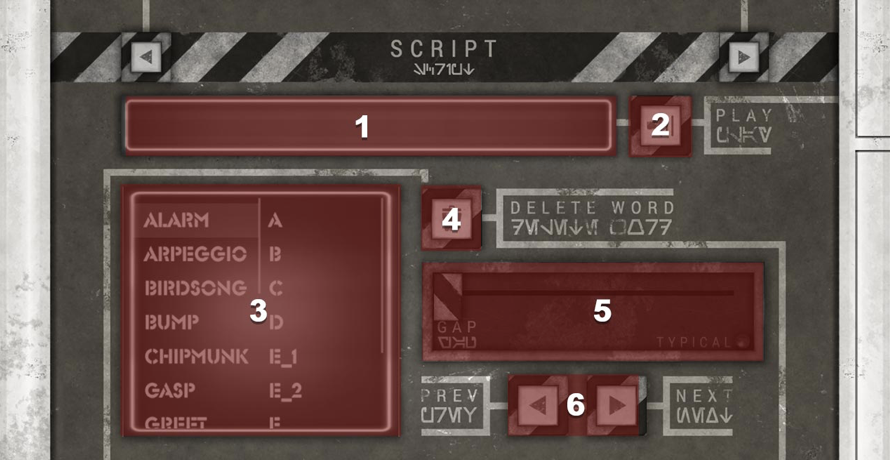

Script Panel

1. Vocalization display

   • A visual representation of the location and timing of the scripted words. The active word will flash.

2. Play

   • Play the scripted vocalization.

3. Word picker

   • Select a category then choose a word within that category. All words that are eligible to follow the previously scripted word (according to the speech AI) are highlighted in green.

4. Delete

   • Delete the active word.

5. Gap

   • Adjust the delay between the previous word and the active word. When the active word is gramatically recommended, the "Typical" lamp will illuminate when the gap is within the recommended range.

6. Word selector

   • Select a new active word by stepping backwards or forwards through the script.

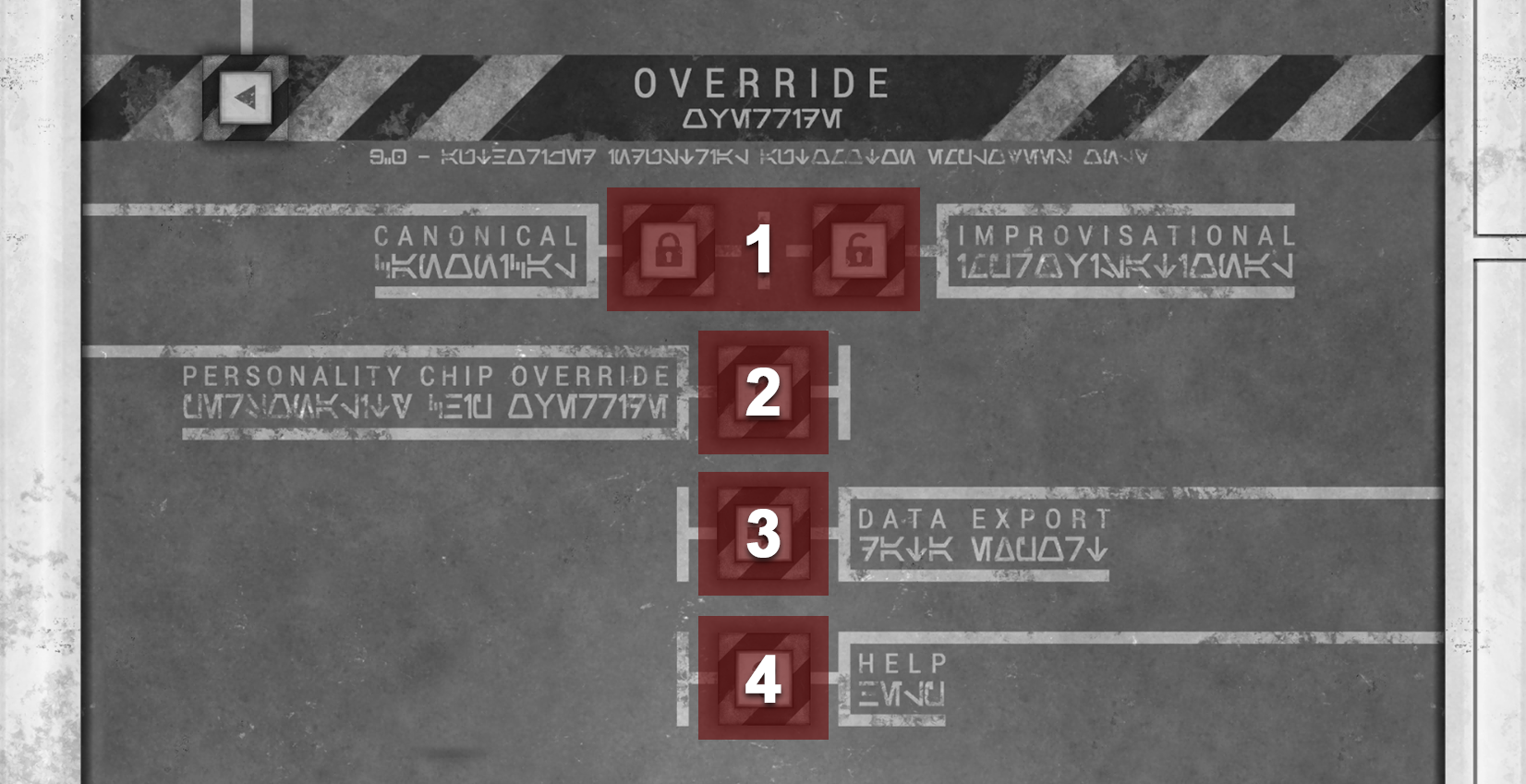

Override Panel

1. Canonical / Improvisational toggle

   • Choose between Improvisational and Canonical mode.
2. Personality Chip Override toggle

   • When enabled, the operator can force R2 into any state by touching anywhere along the emotion indicators on the main panel.
3. Data export

   • Export your settings and vocalizer memory for use with Teensy. See R2D2Vocalizer.txt for detailed instructions.
4. Help

   • A link to these instructions.
